Type

Size(mm)

Rated load(KN)

Reference model

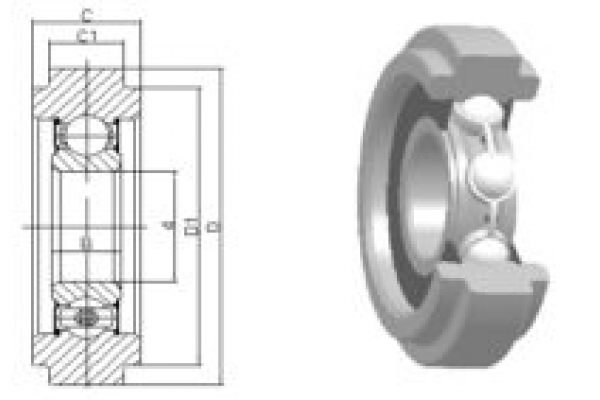

d*D/D1*C/C1*B

Cr

Cor

CG25A3-1

25*70/62*15/6*15

14.0

7.88

CG25A3-2

25*86/74*30/12*17

22.38

11.49

CG30A3-1

30*80/72*16/8*16

19.46

11.31

CG30A3-2

30*75/66*16/8.4*16

19.46

11.31

CG30A3-3

30*90/80*25/15.5*19

27.0

15.19

CG35A3-1

35*91/81.6*21/14.6*21

33.36

19.21

CG35A3-2

35*88/77*25/14.7*21

33.36

19.21

CG35A3-3

35*88/80*25/11.6*21

33.36

19.21

CG40A3-1

40*102/88*23/18*23

40.75

24.01

CG40A3-2

40*103/93*23/18*23

40.75

24.01

CG40A3-3

40*100/91*32/14.2*23

40.75

24.01

CG40A3-4

40*103/93.2*23/14.7*26

40.75

24.01

CG40A3-5

40*103/88*23/18*23

40.75

24.01

CG40A3-6

40*102.5/88*24/18.5

40.75

24.01

CG40A3-7

40*102/87.6*23/18*23

40.75

24.01

CG45A3-1

45*113/99*31/14.5*25

52.86

31.83

CG45A3-2

45*110/100*25/14*25

52.86

31.83

CG45A3-3

45*110/97*25/18*25

52.86

31.83

CG45A3-4

45*113/100*31/17.5*25

52.86

31.83

CG50A3-1

50*139/125*31/14.5*27

62.0

38.5
