Type

Size(mm)

Rated load(KN)

Reference model

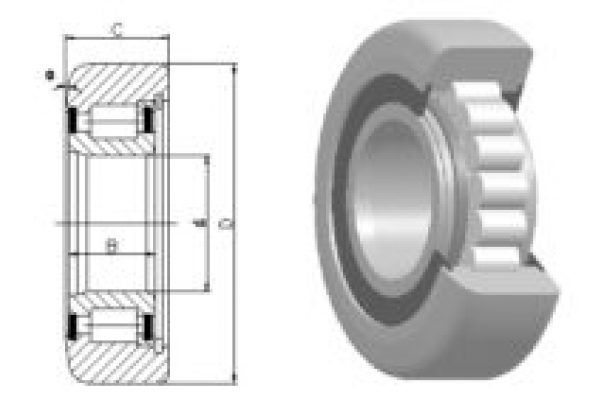

d*D*C/B

Cr

Cor

MG28R6-1M1

28*77.2*27/22.5

54.97

62.89

MG33R6-1M1

33*75.2*24/20.5

44.6

56.3

MG33R6-2M1

33*75.6*24*20.5

44.6

56.3

MG33R6-3M1

33*75.9*24/20.5

44.6

56.3

MG35R6-3

35*78*20/20.5

47.75

74.96

MG35R6-4M1

35*88.5*32/32

100.0

135.0

MG35R6-5M1

35*88.5*35/36

100.0

135.0

MG35R6-6M1

35*78*23/24

58.0

98.5

MG36R6-1

36*90.4*29/23.5

75.94

93.67

MG40R6-1

40*90.5*29/29

65.32

84.02

MG40R6-2M1

40*78*24/24

70.0

80.0

MG40R6-3M1

40*79.7*31/31

90.9

141.0

MG45R6-1M1

45*105.4*34/33.5

95.64

115.3

MG45R6-2M1

45*115.5*34/33.5

95.64

115.3

MG45R6-3M1

45*115.9*34/33.5

95.64

115.3

MG45R6-4T

45*89.55*30/28.6

71.0

128.0

MG45R6-6M1

45*105.8*34/33.5

95.64

115.3

MG45R6-7M1

45*106.1*34/33.5

95.64

115.3

MG45R6-8M1

45*89*30/28.5

71.0

128.0

MG45R6-9

45*106.3*34/33.9

119.5

166.2

MG45R6-10M1

45*105.2*34/29

95.64

115.3

MG45R6-11M1

45*106.5*34/29

95.64

115.3

MG45R6-12

45*127*31.75/29

89.98

77.82

MG45R6-13M1

45*106.1*34/28.5

95.64

115.3

MG50R6-1T

50*123*34/29

94.81

113.34
