Type

Size(mm)

Rated load(KN)

Reference model

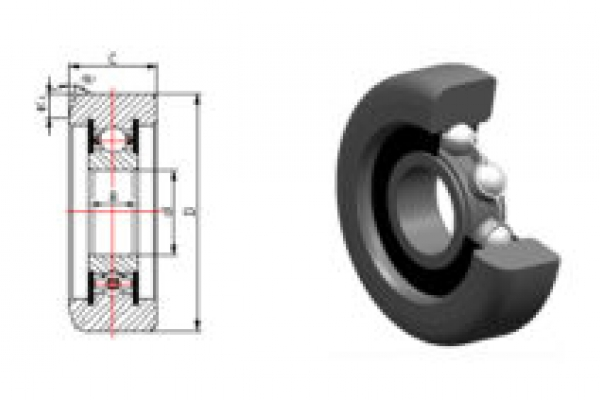

d*D*C/B

Cr

Cor

MG24A6-1

24*70.5*24/20.5

20.6

14.8

MG24A6-2

24*71.0*24/20.5

20.6

14.8

MG24A6-3

24*70.0*24/20.5

20.6

14.8

MG35A6-3

35*107.8*25/21

33.36

19.21

MG35A6-4

35*108.7*25/21

33.36

19.21

MG35A6-5

35*85*25/17

25.67

15.3

MG40A6-1

40*107.6*30/23

25.6

18.1

MG40A6-2

40*107.7*30/20

25.6

18.1

MG40A6-3

40*123*33.5/23

35.07

23.18

MG40A6-10

40*98.5*28.5/22

40.75

24.01

MG45A6-5

45*127*29.92/25

52.86

31.83

MG45A6-6

45*127.81*29.92/25

52.86

31.83

MG45A6-8

45*117*32/25

52.86

31.83

MG45A6-9

45*118*32/25

52.86

31.83

MG45A6-10

45*119*32/25

52.86

31.83

MG45A6-11

45*120*32/25

52.86

31.83

MG45A6-12

45*127.06*31.7/25

52.86

31.83

MG45A6-13

45*127*31.5/25

52.86

31.83

MG45A6-16

45*126.62*31.75/25

52.86

31.83

MG50A6-1

50*129*34/27

62.0

38.5

MG50A6-2

50*130*34/27

62.0

38.5

MG50A6-3

50*131*34/27

62.0

38.5

MG50A6-4

50*132*34/27

62.0

38.5

MG50A6-7T

50*123*34/29

62.0

38.5

MG60A6-1

60*149*36/31

81.75

51.85

MG60A6-2

60*150*36/31

81.75

51.85

MG60A6-3

60*151*36/31

81.75

51.85

MG60A6-4

60*152*36/31

81.75

51.85

MG75A6-1M2T1

75*200*57/39

122.94

86.5
