Type

Size(mm)

Rated load(KN)

Reference model

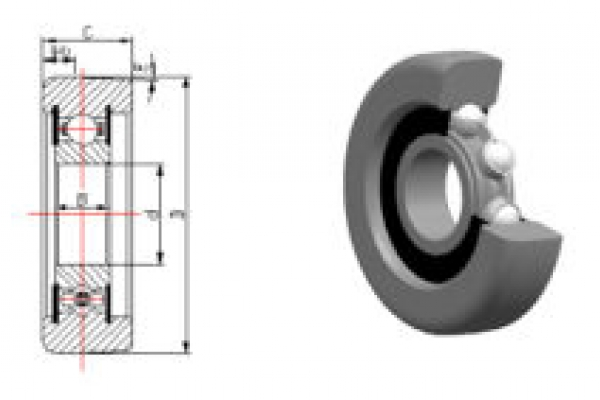

d*D*C/B

Cr

Cor

MG30A5-1M2T1

30*84.5*25/19

27.0

15.19

MG30A5-2

30*84.5*25/19

27.0

15.19

MG30A5-3M2T1

30*92*24/19

27.0

15.19

MG35A5-1T

35*102*25.5/21

33.36

19.21

180707KT

MG35A5-2M2T1

35*102*28/21

33.36

19.21

MG35A5-4M2T1

35*102.5*28/21

33.36

19.21

MG35A5-8M2T1

35*94.5*25/21

33.36

19.21

MG35A5-9M2T1

35*106.5*25/21

33.36

19.21

MG35A5-10M2T1

35*107.7*25/21

33.36

19.21

MG35A5-15M2T1

35*95.7*25/21

33.36

19.21

MG35A5-16M2T1

35*96.7*25/21

33.36

19.21

MG35A5-17M2T1

35*108.7*25/21

33.36

19.21

MG40A5-1

40*101.6*28.58/23

40.75

24.01

MG40A5-2M2T1

40*113.8*32/23

40.75

24.01

MG40A5-3M2T1

40*114.3*32/23

40.75

24.01

MG40A5-4M2T1

40*114.8*32/23

40.75

24.01

MG40A5-5

40*113.8*32/23

40.75

24.01

MG40A5-6M2T1

40*118.5*28/23

40.75

24.01

MG40A5-7

40*114.3*32/23

40.75

24.01

MG40A5-8M2T1

40*119.7*28/23

40.75

24.01

MG40A5-9M2T1

40*120.7*28/23

40.75

24.01

MG45A5-3T

45*119*29/25

52.86

31.83

180709KT

MG45A5-5M2T1

45*119.3*29/25

52.86

31.83

MG45A5-6M2T1

45*119*29/25

48.8

29.3

MG45A5-8M2T1

45*119.5*29/25

48.8

29.3

MG45A5-10

45*119*29/25

48.8

29.3

MG45A5-13M2T1

45*119.4*29/25

48.8

29.3

MG50A5-1

50*123.3*34/27

61.86

37.94

MG50A5-2

50*123.9*34/27

61.86

37.94

MG60A5-4M2T1

60*148.5*45/31

81.75

51.85

MG60A5-5M2T1

60*149.5*45/31

81.75

51.85
